PRUNING LINE

Efficient workflow for high-speed tree pruning

Pruning Line

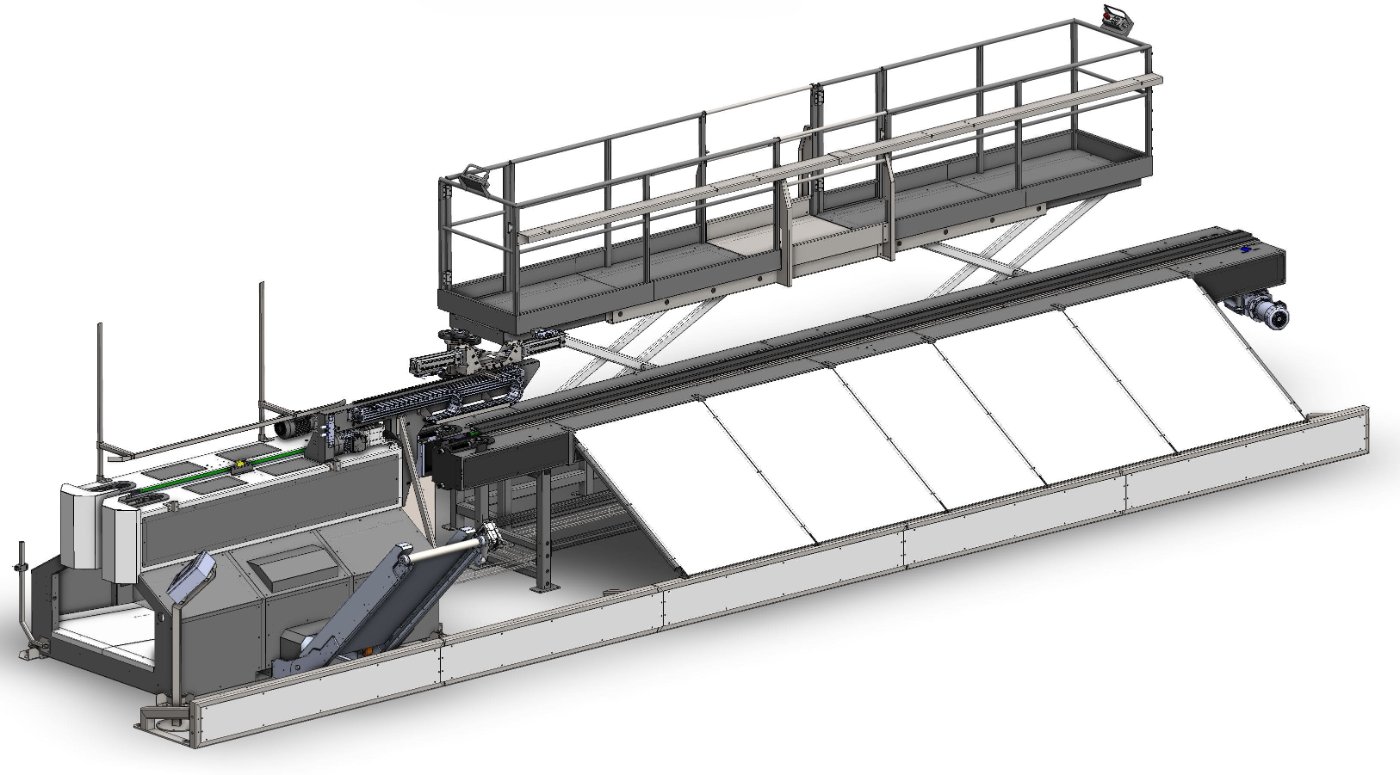

The Pruning Line is designed for nurseries that require high efficiency and throughput in manual pruning operations. The machine creates a structured workflow where multiple operators can work simultaneously. The patented technology increases output, reducing labor requirements by 4-6 operators, while maintaining flexibility for different plant types and sizes. The layout can be configured to match your process and available space.

Efficient workflow
High throughput capacity
Suitable for single stem trees
Adaptable configuration

HOW IT WORKS

Infeed

The tree is manually placed into the root trimmer system.

Root pruning

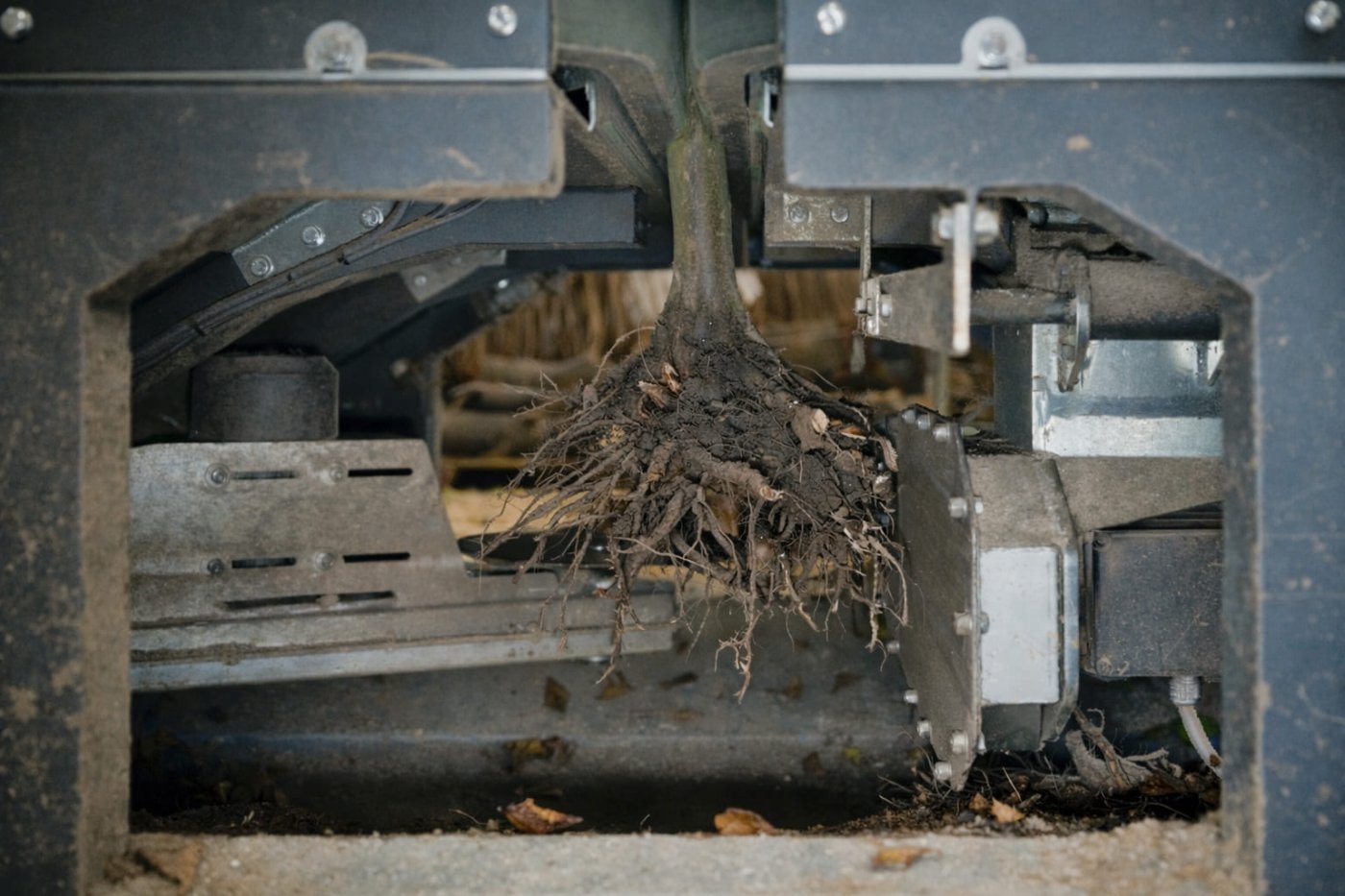

The roots are trimmed evenly to the desired size.

Pruning

The tree is transported to the pruning station, where operators prune it.

Outfeed

The tree is transported to the outfeed for further handling.

Optimize Your Pruning Workflow

Structured workflow

Each tree follows a fixed route, reducing errors and missed steps.

Efficient labor use

Operators focus on pruning while the machine handles positioning.

Ergonomic working position

An adjustable platform keeps trees accessible in a natural position.

Automated transport

The system moves trees automatically between all processing stations.

Efficient Pruning Line for Avenue Trees

Benefits:

Capacity: Processes up to 8 trees per minute with a continuous workflow.

Labor efficiency: High output by combining labor with automation and utilizing it optimally.

Compatibility: Designed for bare-root trees with straight stems.

Range: Supports trunk circumferences of 6-18 cm and trimming diameters of 15-52 cm.

The Pruning Line, in combination with the Root Trimmer, is designed to streamline the pruning process for avenue trees. Trees are automatically transported through each stage, from root pruning to manual finishing, ensuring a fast and structured workflow. This setup enables high throughput with minimal labor, while maintaining full control over the pruning process.
